What is this RFID seal tag used for?

It is used for sealing and identifying containers, vans, freight, logistics shipments, petroleum transportation, chemical goods, mining assets, customs items, postal items, utility equipment, railways, and oil tanks.

Is the seal reusable?

No. The supplied product text states that the seal is one-time use, leaves traces after being pulled, and cannot be reused.

What RFID frequency is confirmed?

The confirmed version is HF 13.56 MHz. The supplied specifications list ISO14443A protocol, NTAG213 chip configuration, and HF reading distance of 0–5 cm.

Does this product support LF or UHF?

LF and UHF are not confirmed in the supplied specifications. If your project requires LF or UHF RFID seal tags, confirm chip, frequency, protocol, and reading distance with the supplier before ordering.

What is the confirmed reading distance?

The confirmed reading distance is HF: 0–5 cm. Longer-range requirements should be verified separately, especially for UHF applications.

Can the seal tag be customized?

Yes. Confirmed customization areas include chip, size, cable length, color, and printed content such as barcode, UID, EPC code, date, serial number, company logo, and company name.

What material is used?

The confirmed material is ABS with a steel core.

Can each seal have a unique serial number?

Yes. The supplied text states that each seal has a unique serial number, and serial number printing is also listed as a confirmed marking option.

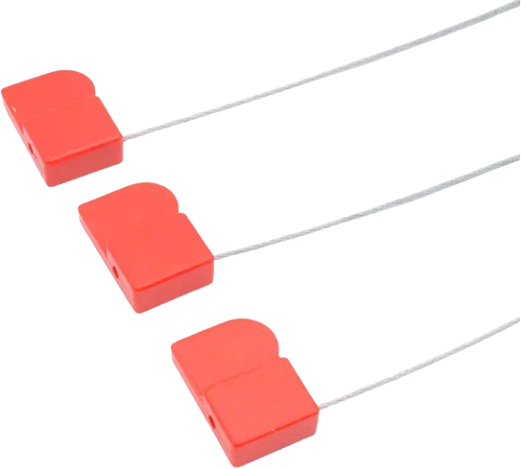

Standard Square RFID Seal Tag

A one-time RFID cable seal tie tag designed for container, freight, utility, petroleum, chemical, mining, customs, and logistics applications requiring tamper evidence, serialized identification, and RFID verification.

One-time seal structure with visible pull traces
ABS body with steel core cable construction
HF 13.56 MHz RFID identification support
Unique serial number for traceability workflows
Logo, barcode, UID, EPC, and date printing

Get a Quote

Standard Square RFID Seal — Features

The Standard Square RFID Seal Tag combines a physical cable seal with RFID identification for logistics, container, freight, utility, petroleum, chemical, mining, customs, postal, railway, and oil tank applications. Its ABS body and steel core cable support secure attachment, while the steel ball diagonal pull structure helps create a one-time locking seal that cannot be reused after being pulled. Each seal can carry a unique serial number and can be printed with operational identifiers such as barcode, UID, EPC code, date, company name, and logo. The confirmed version supports HF 13.56 MHz RFID with ISO14443A protocol and NTAG213 chip configuration.

Key Features

Steel ball diagonal pull structure creates a one-time tamper-evident cable seal that leaves traces after being pulled.
Confirmed HF 13.56 MHz RFID support with ISO14443A protocol and NTAG213 chip configuration for close-range verification workflows.
ABS and steel core construction supports secure attachment in logistics, freight, petroleum transportation, chemical, mining, utility, railway, and customs applications.
Laser printing and silk screen printing support barcode, UID, EPC code, date, serial number, company logo, and company name.

Standard Square RFID Seal — Customization

Chip Selection
NTAG213 chip configuration is confirmed, with alternative HF chip options available for project confirmation.
Size and Cable Length
Customized 36 × 23 mm body and 280 mm cable length requirements can be requested.
Color
Yellow, blue, white, or customized colors are available.
Printing Methods
Laser printing and silk screen printing are confirmed.
Printed Marking
Barcode, UID, EPC code, date, serial number, company logo, and company name printing can be requested.

Standard Square RFID Seal — Specifications

Product Name	RFID Cable Seal Tie Tag
Chip	NTAG213 customized

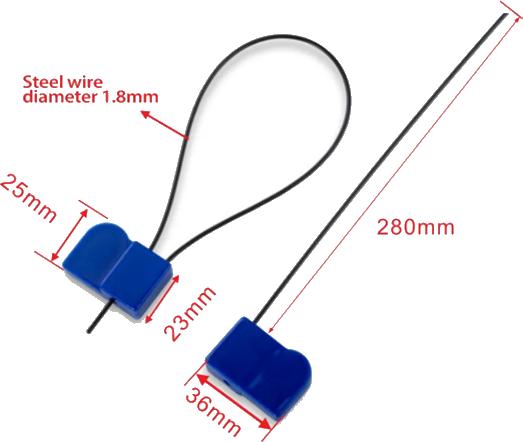

Size	36 × 23 mm, length 280 mm customized
Material	ABS + steel core
Color	Yellow / Blue / White customized
Craft	Laser printing / silk screen printing
Printable Content	Barcode / UID / EPC code / date / serial number
Reading Distance	HF: 0–5 cm
Protocol	ISO14443A
Frequency	13.56 MHz

Standard Square RFID Seal — FAQ

: It is used for sealing and identifying containers, vans, freight, logistics shipments, petroleum transportation, chemical goods, mining assets, customs items, postal items, utility equipment, railways, and oil tanks.
: No. The supplied product text states that the seal is one-time use, leaves traces after being pulled, and cannot be reused.
: The confirmed version is HF 13.56 MHz. The supplied specifications list ISO14443A protocol, NTAG213 chip configuration, and HF reading distance of 0–5 cm.
: LF and UHF are not confirmed in the supplied specifications. If your project requires LF or UHF RFID seal tags, confirm chip, frequency, protocol, and reading distance with the supplier before ordering.
: The confirmed reading distance is HF: 0–5 cm. Longer-range requirements should be verified separately, especially for UHF applications.
: Yes. Confirmed customization areas include chip, size, cable length, color, and printed content such as barcode, UID, EPC code, date, serial number, company logo, and company name.
: The confirmed material is ABS with a steel core.
: Yes. The supplied text states that each seal has a unique serial number, and serial number printing is also listed as a confirmed marking option.
