Reusable PPS RFID Laundry Tag (1-Hole)
Industrial-grade RFID tag engineered for high-temperature, high-cycle commercial laundry operations.
- PPS thermoplastic body rated for harsh chemical and heat exposure
- Designed for industrial wash cycles at sustained high temperatures
- UHF EPC Gen2 compliant — works with standard commercial readers
- Single-hole design supports secure sew-in attachment on all textile types
- Compact form factor minimizes textile impact and reader interference
Reusable PPS RFID Laundry — Features
The Reusable PPS RFID Laundry Tag (1-Hole) is purpose-built for commercial and industrial laundry environments where durability, read reliability, and low total cost of ownership are the primary sourcing criteria. Constructed from polyphenylene sulfide (PPS) — a high-performance engineering thermoplastic — this tag withstands repeated exposure to high washing temperatures, chemical detergents, and bleach without structural failure or read degradation. The single-hole format enables straightforward sew-in attachment across a wide range of textile categories, including workwear, hotel linen, and healthcare garments. Compliant with UHF EPC Class 1 Gen 2 / ISO 18000-6C, it integrates with standard laundry management readers and sorting systems.
Key Features
- PPS material — built for industrial process conditions with resistance to sustained high temperatures, concentrated chemical agents, and mechanical stress.
- RFID performance engineered for real laundry environments, including wet linen density, metal conveyor surfaces, and tunnel washer RF interference considerations.
- Single-hole attachment — practical for high-volume textile operations using standard industrial sewing equipment and attachment cycles.
- Compliance and system integration readiness — EPC Gen2 / ISO 18000-6C protocol compatibility for standards-based UHF reader platforms.
Reusable PPS RFID Laundry — Customization
Reusable PPS RFID Laundry — Specifications
| Product Name | Reusable PPS RFID Laundry Tag (1-Hole) |
|---|---|
| Product Category | RFID Laundry Tags |
| SKU | RE-RTA06 |
| Installation Methods | Pin-on, hanging, adhesive mounting |

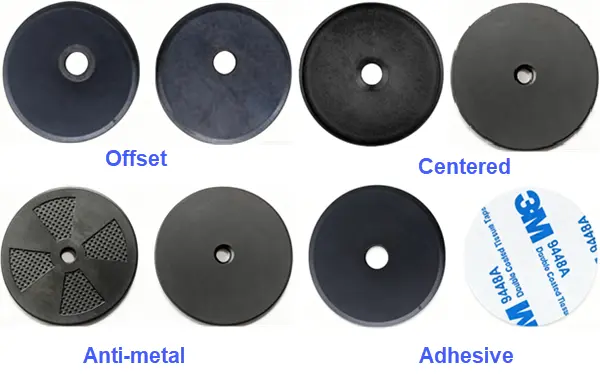

| Hole Position | Centered or offset available upon request |
| Construction & Material | Double-sided PPS; single-sided PPS + epoxy/ABS |
| Diameter Options | 18 mm, 20 mm, 22 mm, 26 mm, 30 mm |
| Color Options | Black, white, orange; custom colors available |
| Optional Adhesive Backing | High-strength, industrial-grade adhesive layer |
| Optional Anti-Metal Layer | Integrated ferrite layer for on-metal functionality |
| Optional Surface Pattern | Custom patterns available for bulk orders |
| Chip Type | High-performance UHF or HF chips available |
| Frequency | UHF: 865–960 MHz; NFC/HF: 13.56 MHz |
| Protocol | UHF: EPC Class 1 Gen2; HF: ISO/IEC 14443A (NFC) |
| Read Range | UHF: up to 8 m / 26 ft; HF: up to 10 cm / 4 in |
| Wash Cycles | 200+ cycles |
| Heat Resistance | 220°C |
| Protection Rating | IP68 waterproof and dustproof |
| Operating Temperature | -20°C to +85°C |
| Surface Marking | Printing, laser engraving |
| Data Service | Pre-encoding service available |
Reusable PPS RFID Laundry — FAQ
-
PPS is an engineering thermoplastic with a higher continuous service temperature and better resistance to concentrated alkaline detergents and bleach than standard nylon grades. Silicone is more flexible but less rigid, which affects dimensional stability during high-speed sorting. Share your wash program for a suitability check.
-
The rated wash cycle count is a confirmed specification that varies by product variant and test protocol. This value is not yet published on this page — please contact us directly and we will provide the validated figure along with the applicable test standard.
-
This tag operates in the UHF band (860–960 MHz) and complies with EPC Class 1 Gen 2 / ISO 18000-6C, the dominant standard for industrial laundry RFID. Include your laundry management system or reader model in your inquiry and we will confirm compatibility.
-
Single-hole sew-in tags are the standard format for healthcare and hospitality linen tracking. Whether a specific linen weight requires additional evaluation depends on the attachment thread and stitch configuration used by your laundry. We recommend requesting a sample for attachment testing before committing to volume.
-
Chip selection availability depends on production run and MOQ. Many manufacturers in this category support selectable chip options for volume orders. Contact us with your system's chip requirement and we will confirm what is available for your order size.
-
Compliance documentation availability needs to be confirmed with the supplier. Please include your import market in your inquiry and we will provide the relevant compliance documents with your quotation.
-
Whether this tag has been tested to ISO 15797 is a supplier-confirmed detail. Please specify your required wash process parameters so we can provide the most relevant performance data.
-
MOQ and encoding options are order-specific. Contact our team with your quantity, target frequency, required chip type, and encoding format, and we will return a quote with lead time.
